A Appearance requirements:
1. Product size L*W*H (mm): 730*500*1050(±5) (closed), 1110*500*1310(±5) (expanded).
2. Material requirements: steel and aluminum combination, consisting of upper desktop, middle column, and lower base.
3. The sheet metal parts and lower base of the podium are made of 1.0-3.0mm cold-rolled steel plates. All sheet metal parts are pickled, phosphated, sprayed, and then baked at high temperature, which can effectively prevent rust, the podium is sprayed finely and the particles are uniform.
4. ▲The product has passed the antiviral activity test for cold-rolled steel frames. The test basis and method are ISO 21702:2019, for experimental viruses: human coronavirus, host MRC-5 cells antiviral test, analysis of test results, antiviral activity value, ≥0.6, antiviral activity rate ≥76.4%. Provide a test report with CNAS or CMA logo (original copy or scanned copy with red seal).
5. The round aluminum alloy front shell, touch button panel, armrest connection plate, and the quadrangular prism of the middle column of the podium are made of aviation aluminum profiles. The aluminum profiles are extruded by a mold, and the surface is treated with brushed oxidation. The edges of the aluminum profiles are all chamfered to prevent scratches.

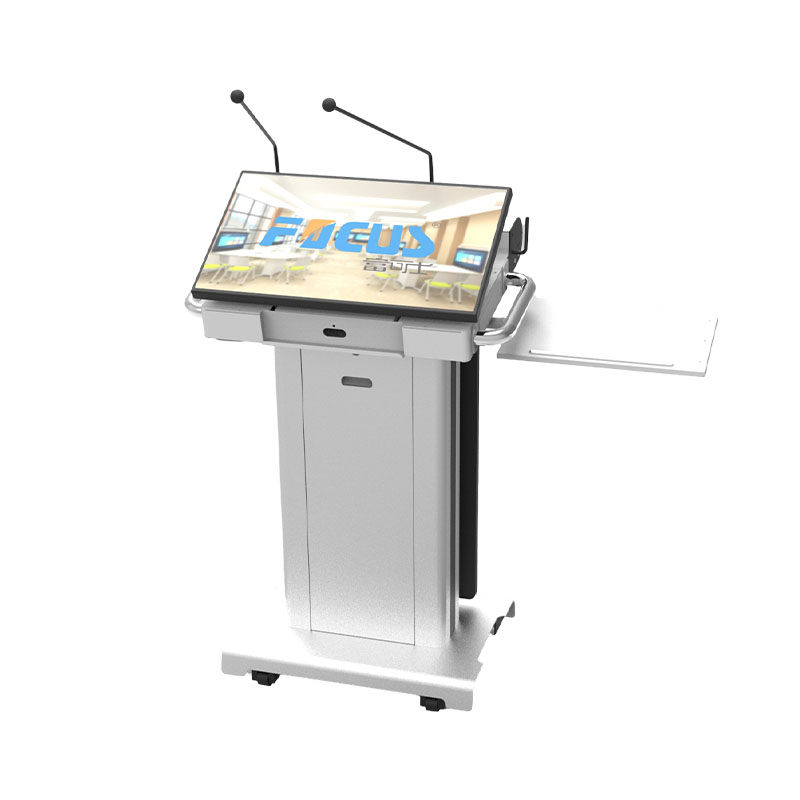

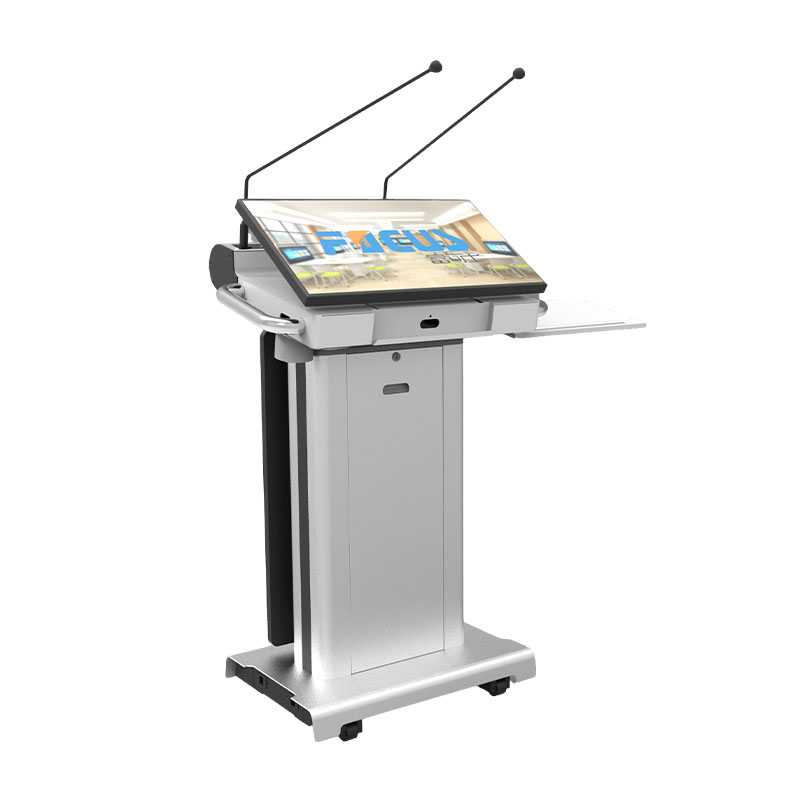

6. The overall upper desktop of the podium is tilted 10 degrees horizontally toward the user, which is convenient for users to improve their visual experience. The notebook interface module panel is installed on the right side of the upper layer: (HDMI mother socket * 1, 3.5 audio mother socket * 1, Typec interface * 1), the podium function buttons from left to right (wired gooseneck microphone switch and volume adjustment, PC volume adjustment, large screen switch, video switching switch, task window, one-key start, one-key return, display up, display down, podium up, podium down, wireless gooseneck microphone switch and volume adjustment), gooseneck microphone. A 23.6-inch capacitive touch display is reserved behind the front shell. The left and right sides of the touch all-in-one machine are stainless steel pipe bent hand guards, and the diameter of the round stainless steel pipe is 32mm. The left and right armrests are symmetrical. One end of the armrest is installed on the display fixing sheet metal under the all-in-one machine, and the other end is installed on the armrest connection plate for easy use.

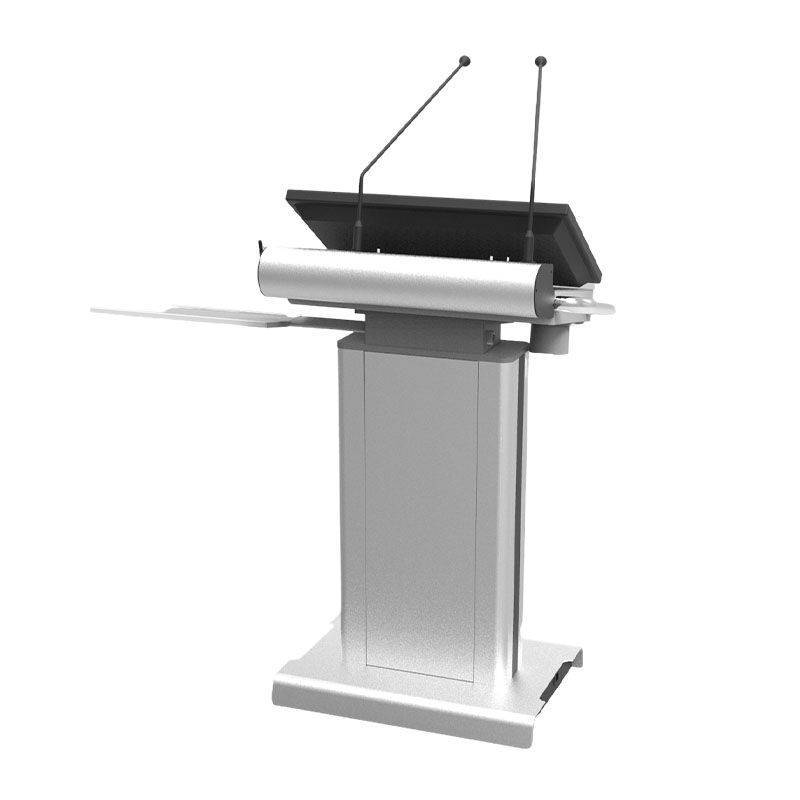

7. The four edges of the middle column of the podium are made of brushed anodized aluminum columns, the four prisms are arc-shaped chamfered, and the front, back, left and right sides are made of aviation aluminum and aluminum columns are installed using inlay technology. There are no exposed screws on the column, and the overall appearance is beautiful and generous. The middle column is embedded with an electric lifting motor to adjust the height of the podium desktop according to user needs.
8. The lower base of the podium adopts an arc design, using 3.0mm thick aviation aluminum material arc bending and anodizing. The left and right parts of the base are input and output interface modules. The output interface on the left is RS232 interface, HDMI, audio, USB, network port, wired MIC, and the right is AC power input interface. 4 load-bearing Fuma casters are installed at the bottom, and the 4 casters can bear a load of ≥500KG, which is convenient for movement.
B Functional description
1. Integrated design: 23.6-inch touch display and OPS computer, integrated gooseneck microphone, notebook interface module, lifting motor and other electronic equipment.
2. 23.6-inch touch display: support HDMI, resolution: 1920x1080@60hz, USB touch output interface, ten-point capacitive touch screen, 1080 high-definition LED screen.
3. Optional OPS computer host.

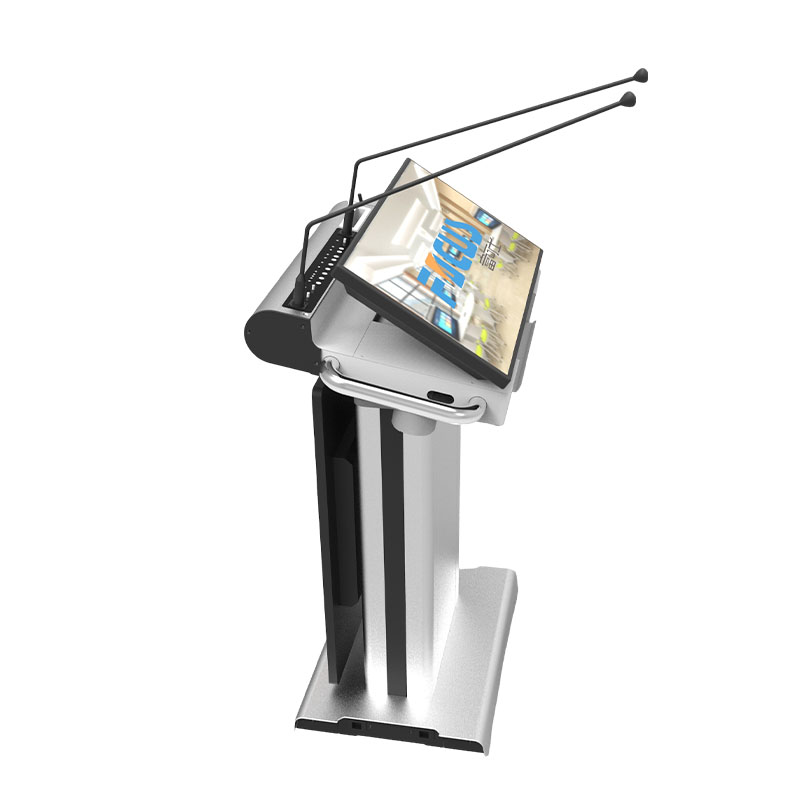

4. The display angle of the display can be adjusted by an electric push rod, with an adjustment angle of 10-36º. The electric push rod is adjusted by two touch buttons for display up and display down, and the maximum load-bearing capacity of the electric push rod is 10KG.
5. The desktop is embedded with a 70CM extended hose rod gooseneck microphone, V-shaped supercardioid pointing, and the effective sound receiving distance is 20CM.
6. Upper panel and external device interface panel: easy to use: Typec mother seat * 1, HDMI mother seat * 1, 3.5 audio mother seat * 1, wireless MIC transmitting antenna, display up, display down, podium up, podium down, gooseneck microphone switch and independent volume adjustment knob.
7. Electric lifting of the podium desktop height: the desktop height can be adjusted electrically according to the height, without noise, and the desktop can be raised by 150mm through the two touch buttons of the podium up and podium down.
8. Left signal output: All-in-one output signal: HDMI mother seat * 1, 3.5 audio mother seat output * 1, RS232 interface control large screen output * 1, network port * 1, USB * 1, MIC Canon mother seat output interface * 1. 9. Power input on the right: AC power input socket * 1, red power switch.
10. Working voltage: 110-240V 50-60HZ.
11. Lithium battery module (optional): voltage: 18.5V, capacity: 30AH, with power display, full power can provide power for the whole set of equipment for 2 hours, equipped with step-down module, the voltage input: 0-35V, output: 0-30V adjustable, and with battery charger, input: 220V, output: 21V/5A, convenient for charging.

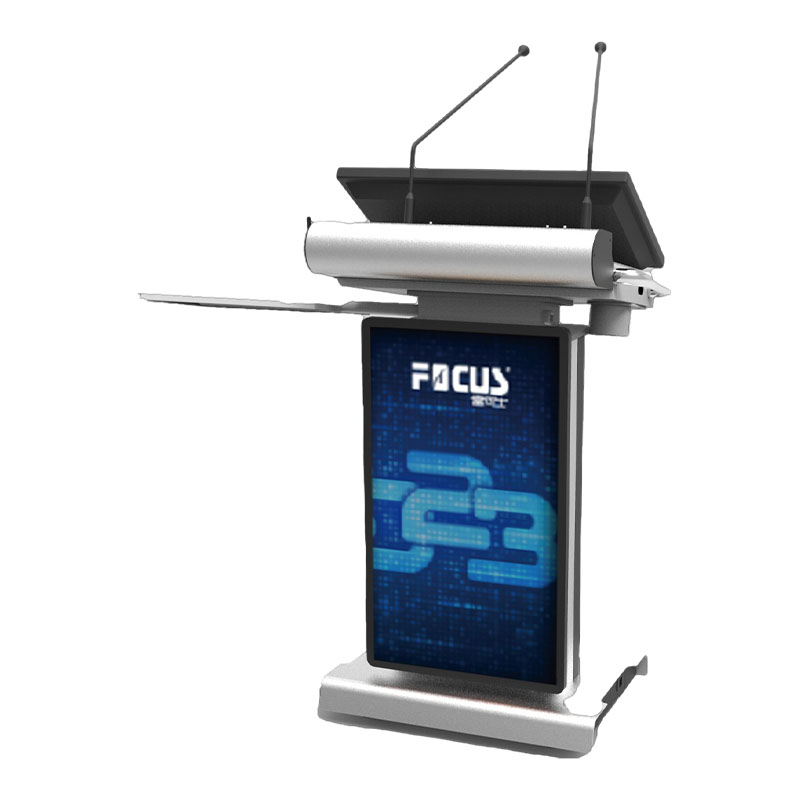

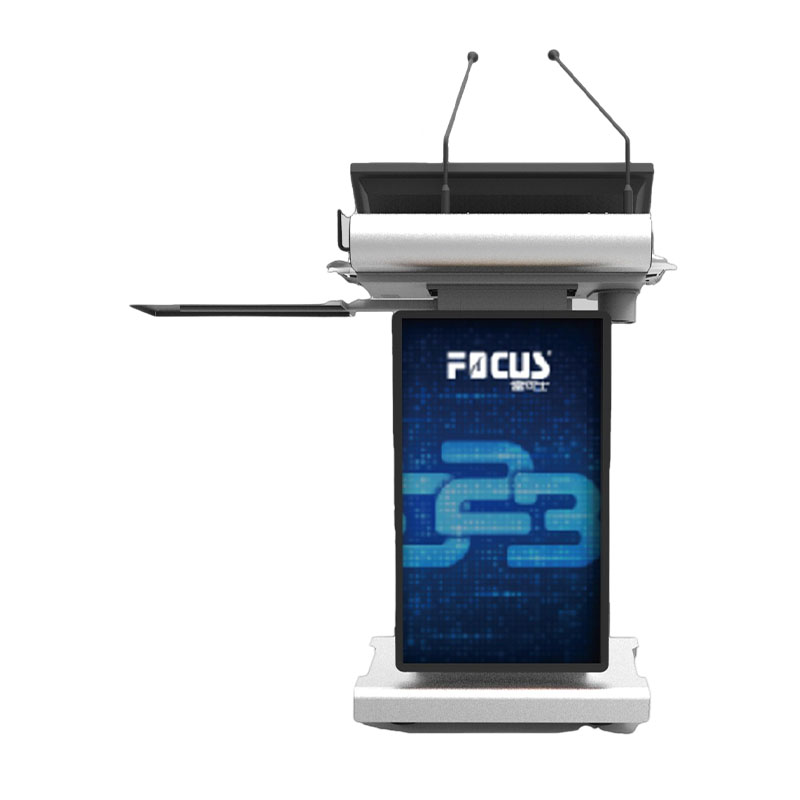

12. Advertising machine module (optional): A 32-inch advertising machine can be placed behind the podium, with ultra-narrow frame and arc corner design to ensure safety and anti-collision, the advertising machine supports multiple playback modes such as loop, timing, and insert, and supports wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
13. Wireless microphone module (optional): no need for external microphone cable, wireless transmission using wireless sensing, wireless sensing distance ≥10m, 70CM extended hose stem gooseneck microphone, can be switched with wired microphone without affecting the sound quality of the microphone.
14. Provide legal certification documents of product source channel (including but not limited to agency agreement, original factory authorization, etc.) and original factory three-year after-sales service commitment letter.
