Laptop Charging Cart, Charging Storage Cabinet, Charing Trolley CP30-LU-A
CP30-LU-A
30-port USB low-voltage charging cabinet, suitable for charging and storing tablets up to 12 inches
1. Material: cold-rolled steel body, single-door design, front and rear doors are locked for anti-theft, and there are heat dissipation holes on all four sides, which is convenient for users to take the tablet and dissipate heat.

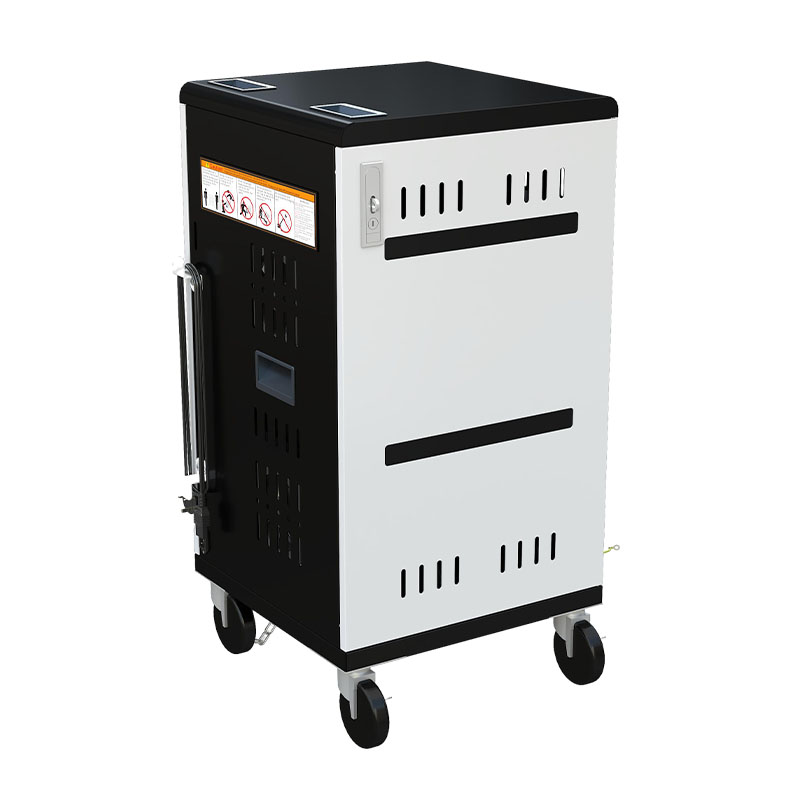

2. Appearance: The cabinet adopts an arc design, with embedded plastic buckles on both sides, it adopts 4-inch universal silent casters for easy movement. Overall dimensions: 450*450*880mm (error ±5mm)
3. ★Function:
(1) Input power: AC110-250V, 50/60hz, 10A.
(2) Output: supports ordinary 5V/2A, 5V, 9V, 12V charging protocols (BC1.2, QC2.0, QC3.0, AFC, FCP, SCP, PE1.1, PE2.1).

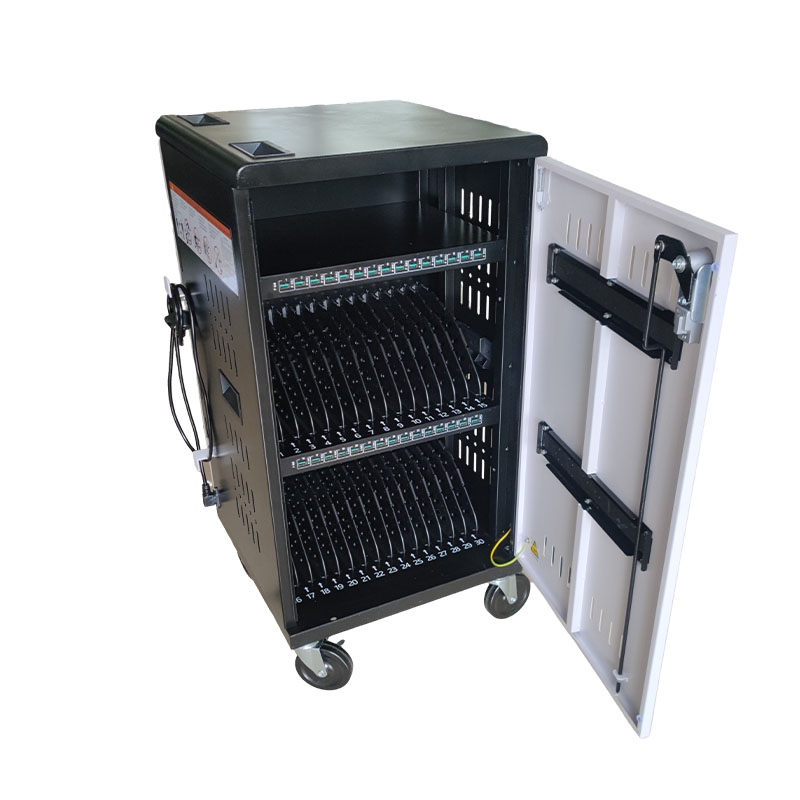

(3) 30-bit charging interface: 2 layers of power supply, 15 USB-A ports per layer Each port has a corresponding digital number, and each port has a charging status indicator.
(4) Cabinet modular management, clear LED status indicator, front door with acrylic observation hole, when the charging cabinet is powered on, the indicator light is red, when the tablet is charging, the indicator light is blue, and the red light is turned on when charging is completed, the power is off and the light is off.

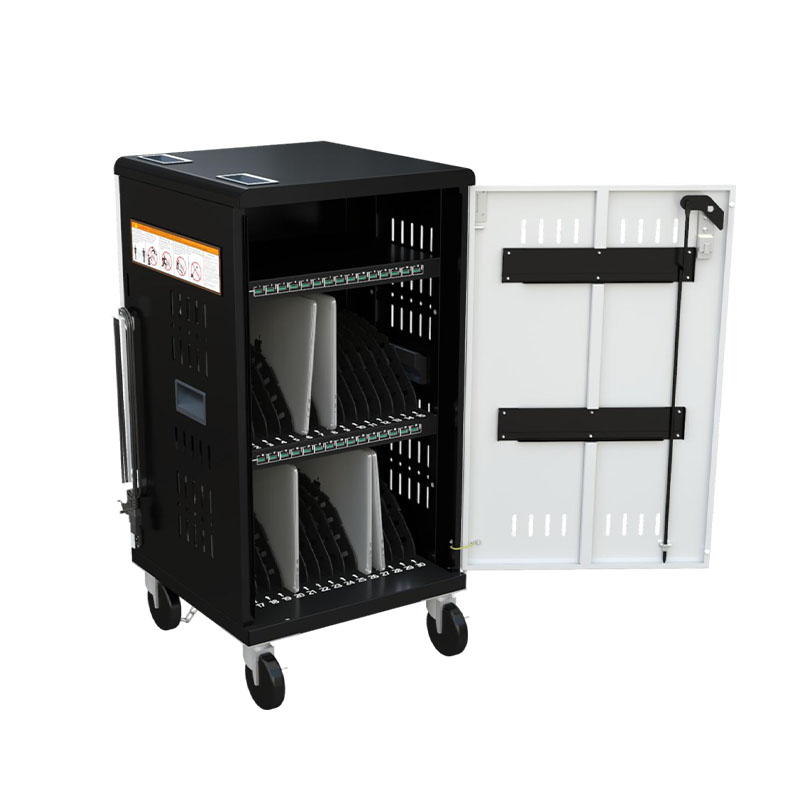

(5) Charging tablet size: maximum support 12-inch IPAD (maximum IPAD size: 300*250*23mm)
(6) Upper storage space size: 410*300*130mm
