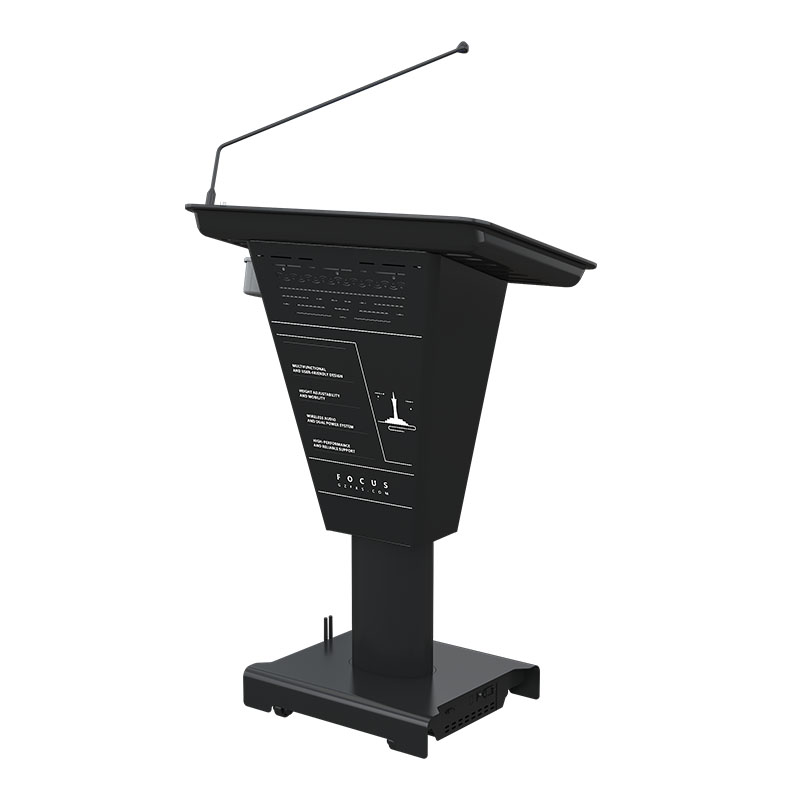

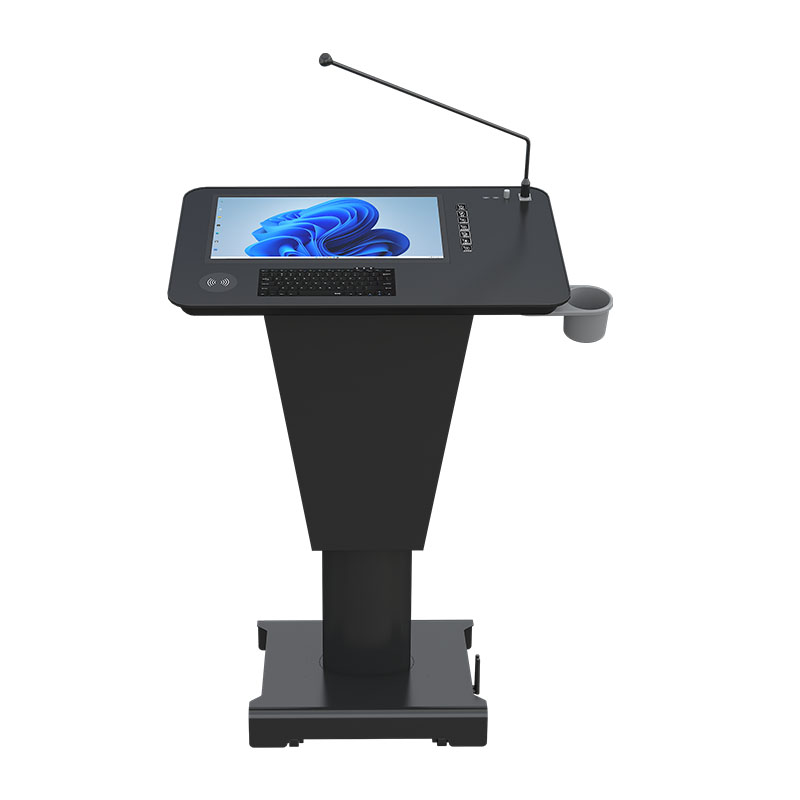

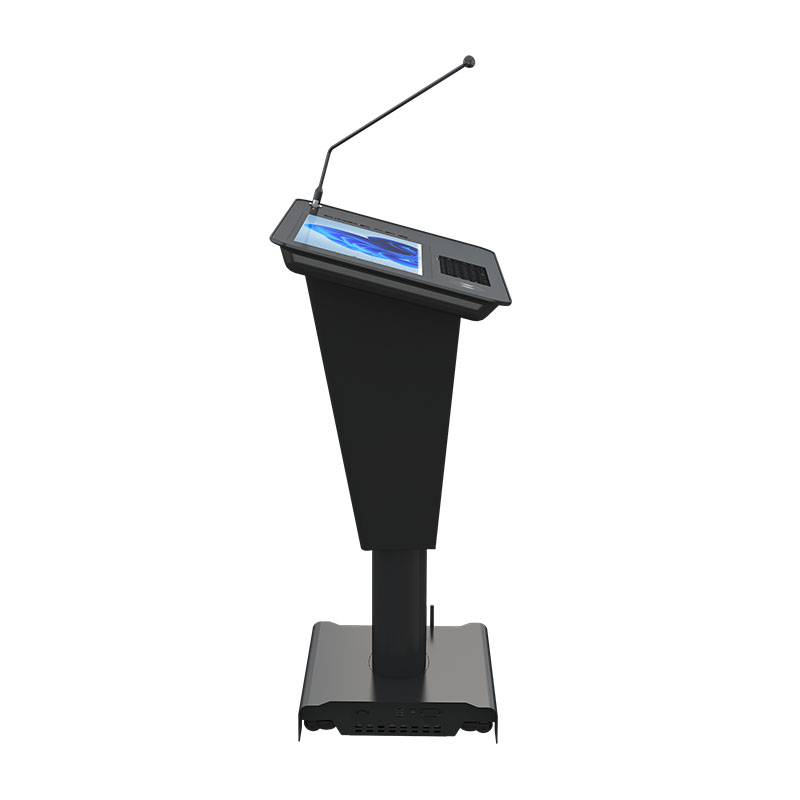

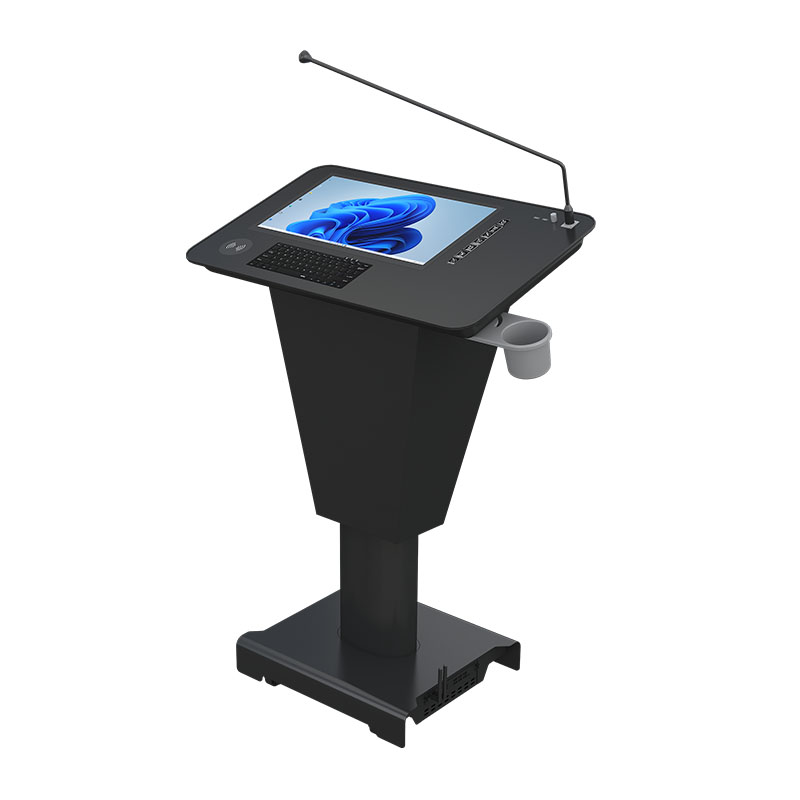

Podium; Lectern; Pulpit; Lecture Stand
SP-Y900-E
1. The podium is freely adjustable in height, integrating audio, video and writing.
2. The podium integrates OPS host, writing screen, loudspeaker, gooseneck microphone, and wireless charger.
3. The podium is electrically adjustable in height to accommodate speakers with different height requirements, and can be adjusted to a minimum of a symposium-style speech.
4. The desktop is equipped with a writing screen to annotate and write on the speech content in real time.
5. It is equipped with one-button switch equipment, one-button annotation, one-button erase software and hardware functions, and the functions support customization.
6. The main material is made of aviation aluminum, which shows the texture and tension of the product.
7. The podium is equipped with mobile wheels to support arbitrary movement.
Technical parameters:
1. Product size L*W*H (mm): 800x490x (950~1250) mm, height adjustable range 300mm.
2. The lifting motor adopts silent technology, and the lifting can be adjusted 0-300MM at will, and the process sound is less than 30db
3. Material: The upper desktop is made of aluminum alloy with a thickness of not less than 5mm, and the upper base is made of black ABS plastic in one piece, with a wall thickness of ≧3mm. The table body is made of 1.0-1.5mm cold-rolled steel plate, and all the sheet metal is pickled, phosphated and sprayed before high-temperature baking.

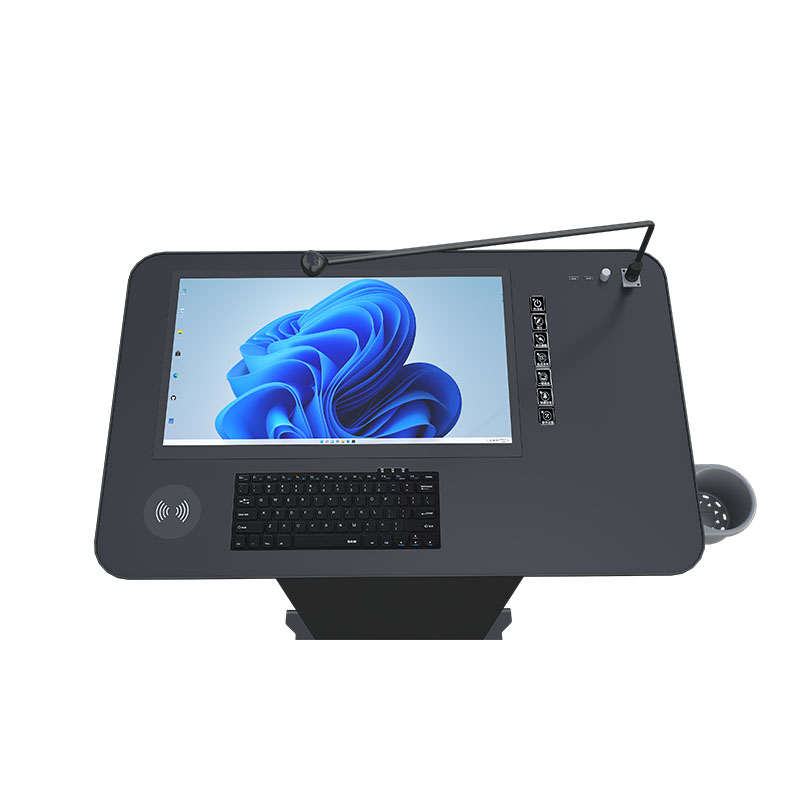

4. The upper aluminum alloy desktop has a 21.5-inch capacitive touch display embedded on the left side of the desktop, which supports 10 electric touch and adopts full lamination technology. The lower side of the display is equipped with a physical keyboard and a mobile phone wireless charging module; the right side of the desktop is embedded with a 9-key control button, a USB 3.0 interface*2 and a 70cm long high-sensitivity gooseneck microphone and microphone adjustment button. The bottom is equipped with a hidden plastic cup holder, which can be rotated 90 degrees to facilitate the speaker to place the cup.
5. The middle layer is mainly composed of a lifter, with a built-in amplifier speaker. The working efficiency of the amplifier is >90%, the output power is 260W, the rated impedance of the speaker is 4Ω, the rated power is 90W, the peak power is 360W, the frequency response range is 95Hz-20KHz, the directivity is 120°x70°, the sensitivity is 93dB/M/W, and the maximum sound pressure is 112dB.
6. The nine independent touchpad functions embedded on the right side of the display are arranged from top to bottom: power on and off (one-button switch: built-in computer on + control large screen on; built-in computer off + control large screen switch), annotation, annotation cancellation, annotation clearing, one-button desktop, quick start, software settings, lecture table up, lecture table down, lecture table up and lecture table down buttons.
7. There are 4 casters at the bottom to facilitate the movement of the podium; the installation position of the OPS host is configured on the right side of the lower layer. The OPS host (configuration: CPU: I5-11 generation, memory 16G, hard disk 512G, WIN10 English system),
8. HDMI output interface x1, audio output interface x1
9. Weight 50KG, packaging method: honeycomb carton (including bottom tray)
