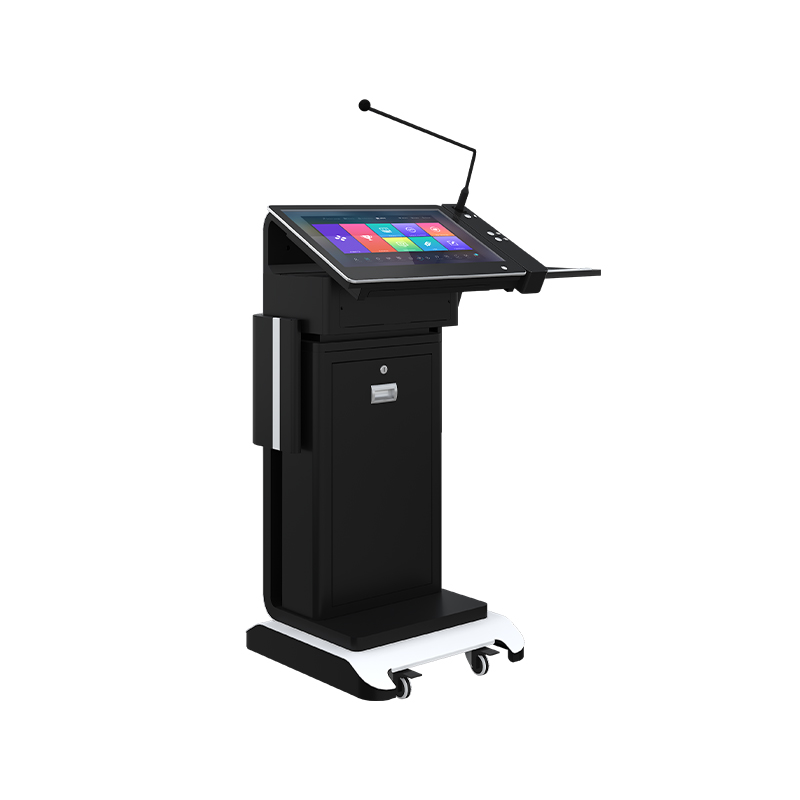

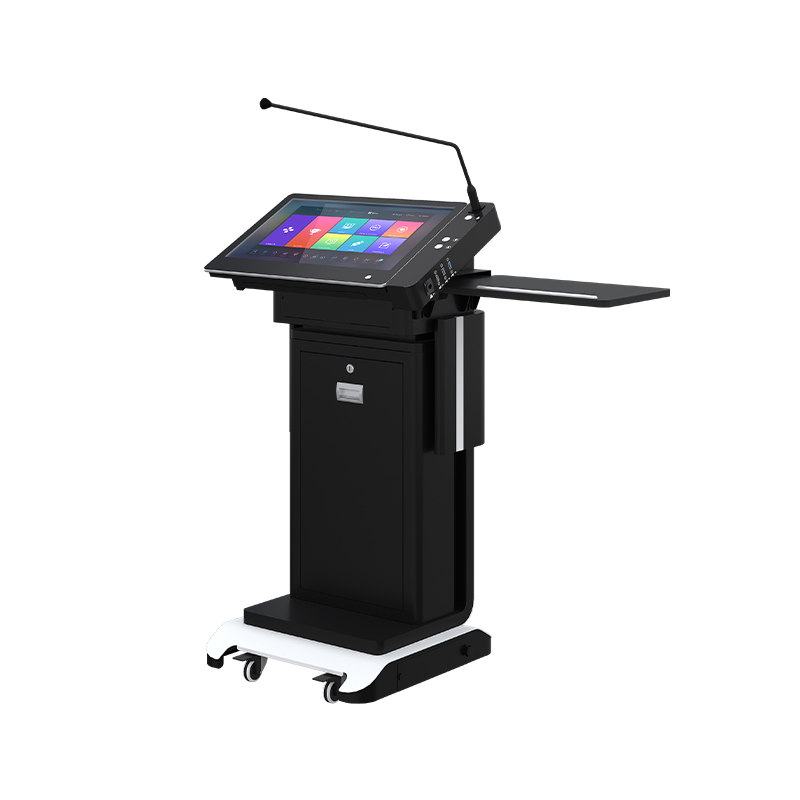

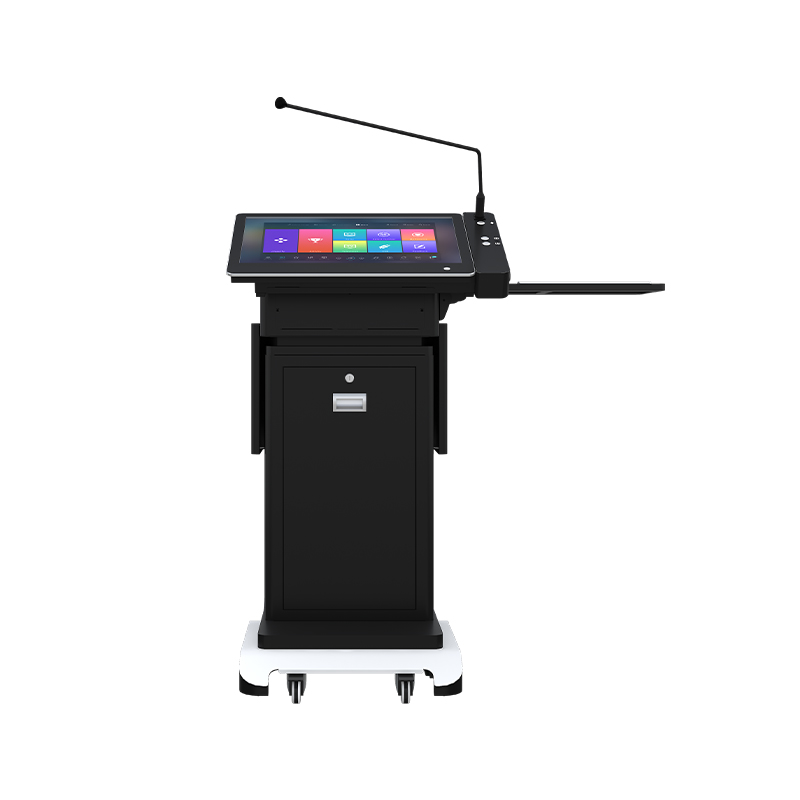

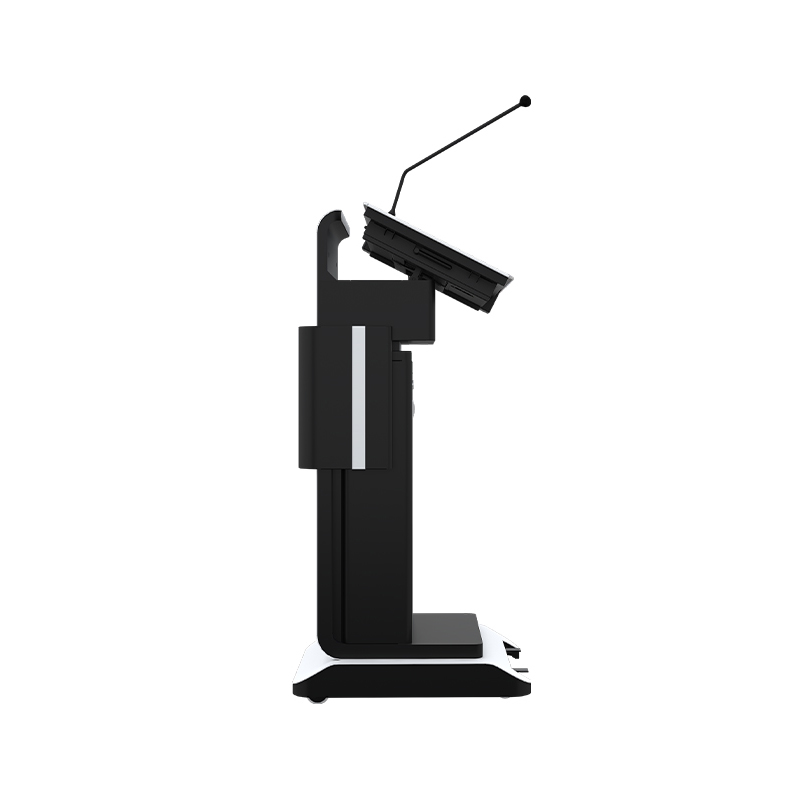

Podium, Lectern, Pulpit, Lecture Stand
Brand: Fukushi
Product Name: Lecture Platform
Model: ST800
1. The podium is equipped with an all-in-one manual adjustment system, which can easily adjust the all-in-one to the best viewing angle for the speaker.
2. The podium integrates a writing screen all-in-one and a gooseneck microphone to build an integrated speech interaction platform, realizing seamless connection between content display and sound pickup during the speech process.
3. The podium has a built-in electric lifting system to adapt to speakers of different heights, ensuring that every speaker can get a comfortable speech experience.
4. The front of the podium is equipped with a customizable sign device, which can be customized according to the subject of the speech, the content of the activity, etc.
5. The desktop has a rich interface reserved to meet the connection requirements of various devices such as notebooks and external storage devices, and realize fast data transmission and interaction.
6. The podium is equipped with 4 mobile wheels with brakes, which can easily realize the movement of the podium in any direction, convenient for flexible deployment in different venues.
1. Product size L*W*H (mm): 600x505x (1053~1203) mm, the overall structure is compact, suitable for a variety of speech environments, and the height adjustment range meets the needs of different scenarios.
2. The podium is made of cold-rolled steel with a thickness of ≥1.0mm, and is made through precision processing and welding technology to ensure the product's stable structure and strong bearing capacity, the upper desktop adopts a high-precision damping shaft angle adjustment mechanism, which can be accurately manually adjusted in the viewing range of 0~30° to achieve smooth and smooth adjustment, and has a reliable locking function, which can be firmly locked at any angle without shaking.

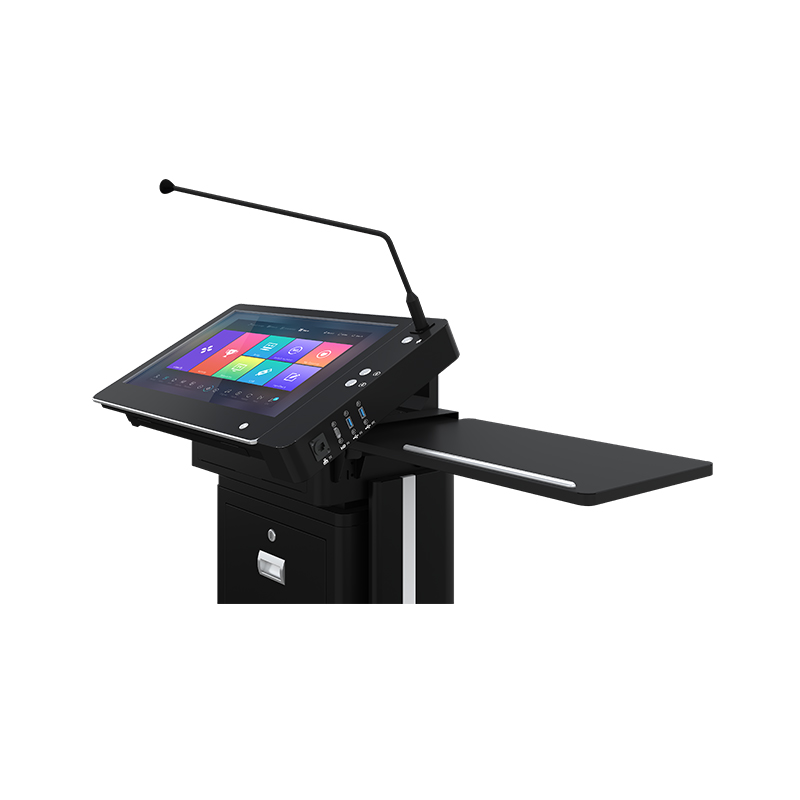

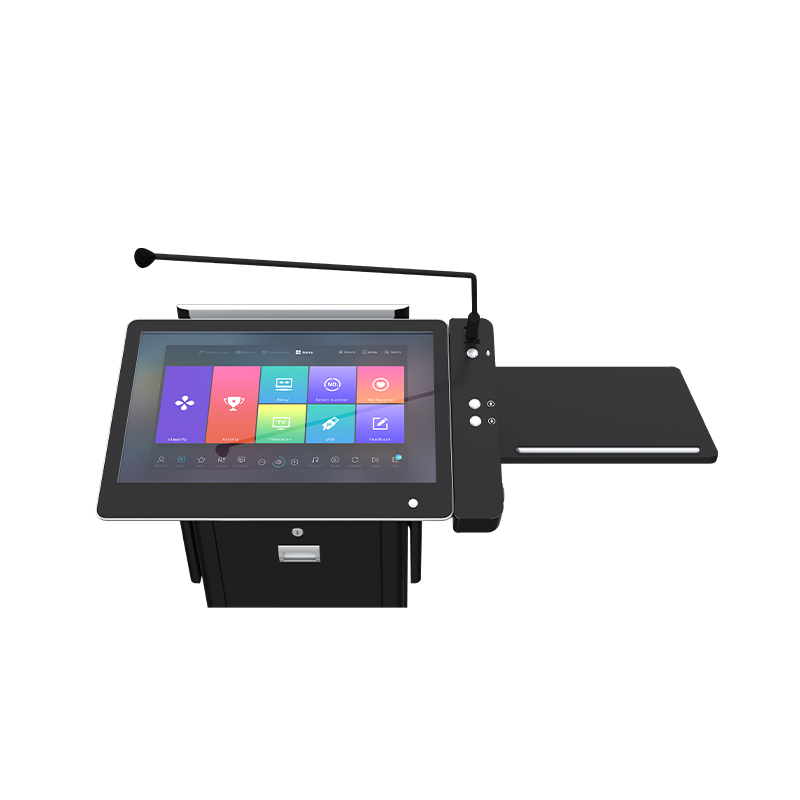

3. A 21.5-inch all-in-one computer is embedded on the left side of the upper desktop. The screen uses capacitive ten-point touch technology for smooth writing, the right side of the desktop is equipped with an integrated control button to realize the lifting function of the podium with one button, it is equipped with a 60cm long high-sensitivity gooseneck microphone, with an independent microphone switch button to ensure clear sound pickup and effectively reduce environmental noise interference.
4. Interface layout: The upper right side is equipped with 2 USB 3.0 interfaces, 1 HDMI interface, and 1 network port. The right side of the base is reserved with 1 power interface, 1 audio interface, 2 network ports, 2 HDMI interfaces, and 2 USB 3.0 interfaces, which meet the needs of high-speed data transmission, support high-definition video signal transmission, ensure stable network connection, and facilitate centralized connection and management of equipment.

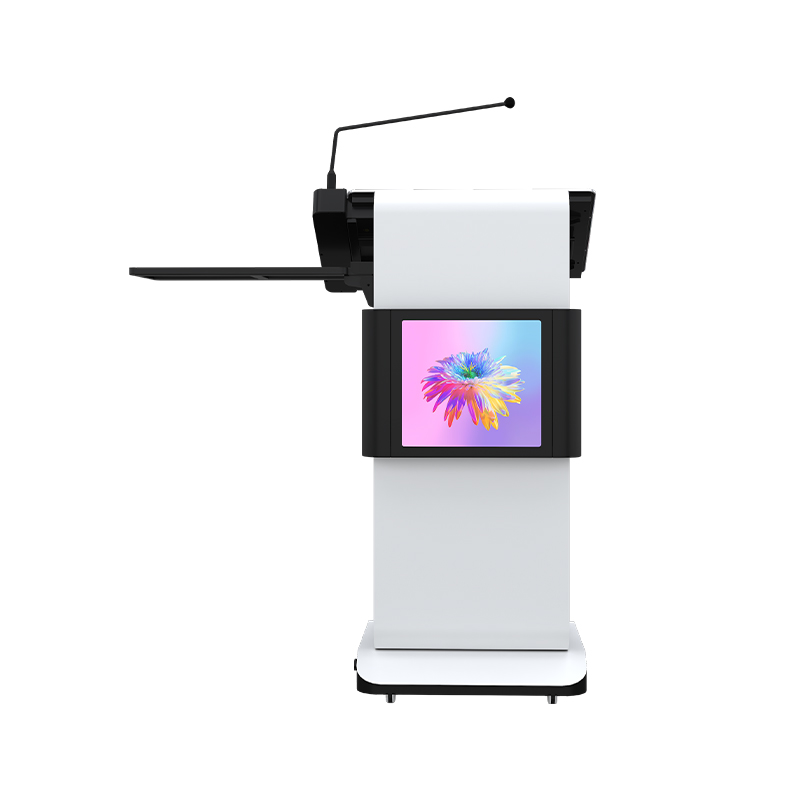

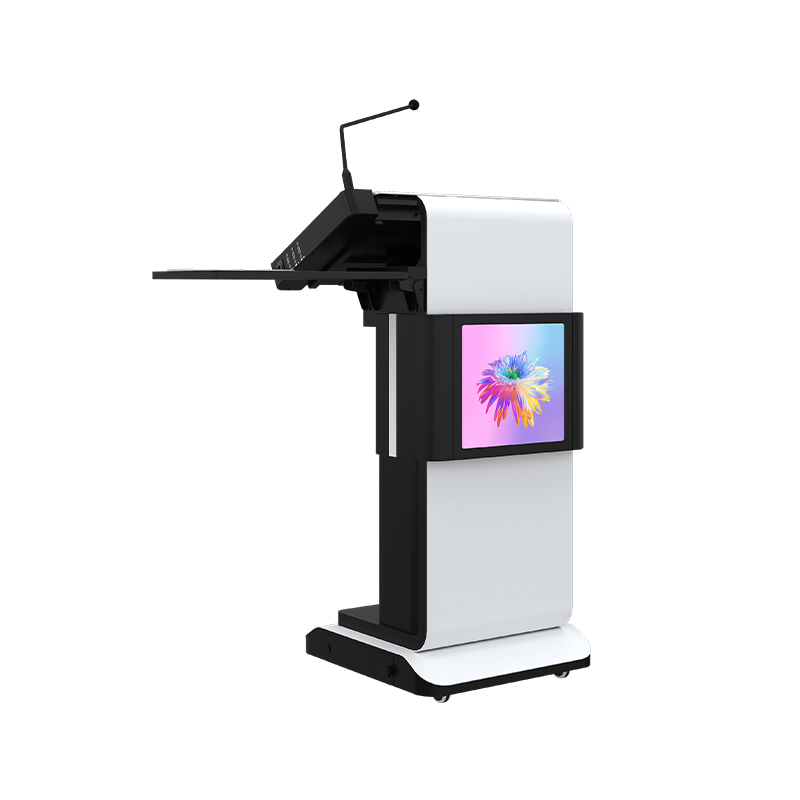

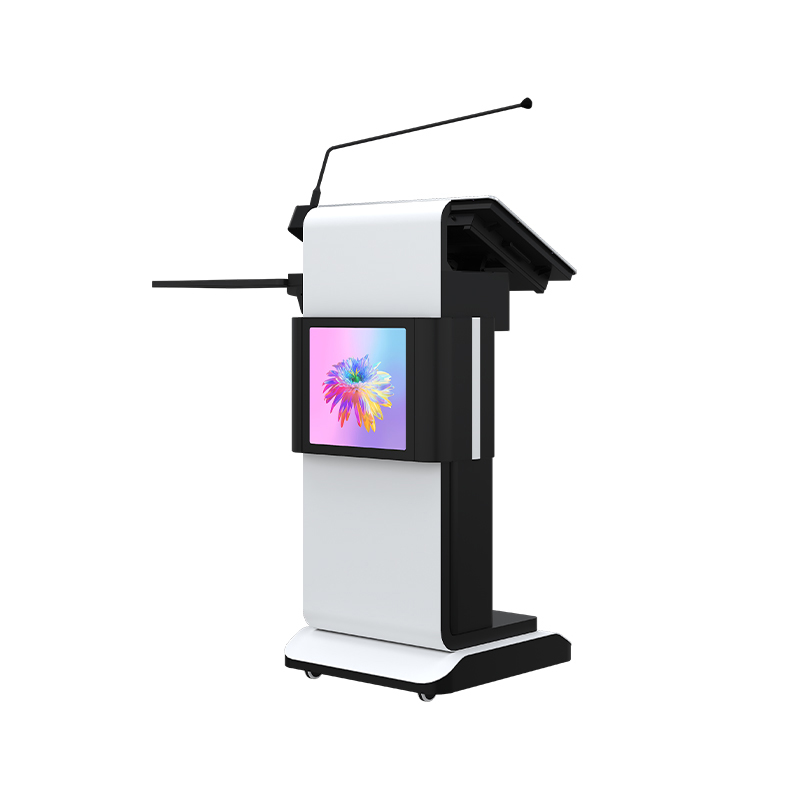

5. A customizable sign device is designed in front of the podium, with a display size of 300*210mm and an internal LED backlight to enhance the professionalism and visual effects of the speech.
6. A foldable laptop tray is available on the right side of the podium. When unfolded, it provides a stable laptop placement platform for the speaker to meet the speaker's diverse usage needs.
7. 21.5-inch all-in-one system configuration: CPU configuration I5-11 generation, memory: 8G DDR4, 256G SSD, display output: ten-point touch, resolution 1920 x 1080, brightness 300cd/m², screen contrast 1500:1, Mohs grade 7 tempered glass, touch deviation ≤2%, use time 7*24h, external interface USB3.0*2, HDMI output*1, RJ45*1, VGA output*1, audio output*1, DC12v input*1
8. (Optional) 21.5-inch electromagnetic capacitive dual-mode touch, all-in-one with anti-glare.
(1) 21.5-inch all-in-one system configuration: CPU configuration I5-11 generation, memory: 8G DDR4, 256G SSD, display output: supports capacitive electromagnetic dual-mode touch, with AG anti-glare, equipped with a passive touch writing pen, supporting whiteboard software, can realize annotation, annotation cancellation, annotation screen clearing and other functions, the pen head can realize screen annotation erasing function. External interface DC*1, HDMI*1, VGA*1, USB*4, RJ45*1, MIC*1, LINE*1.
(2) Specifications of 21.5-inch all-in-one machine: electromagnetic touch resolution 0.012mm, positioning accuracy ±0.5mm, pen tracking speed>,2m/s, pen sensing pressure>,15g, pen pressure range full pen pressure 8192 levels, pen tilt angle relative to the vertical board within ±45°, electromagnetic power consumption <,100mA, passive electromagnetic pen, capacitive 10-point surface touch, ≥1.5mm thick tempered glass, response time 8ms, contrast>,1000:1, brightness 260cd/m³, alloy metal frame.
