1. Specifications: L*W*H (mm): 1200*780*1020 (±5mm deviation allowed).
2. Material: The tabletop is made of wood yellow 9mm high-density fiberboard with a density greater than 720kg/cubic meter. The edge is made of single-sided edge sealing technology and cold-pressed melamine veneer, which is scratch-proof and water-proof.
3. The main body is made of 1.0-1.5mm cold-rolled steel plate. All sheet metal is pickled, phosphated and sprayed before high-temperature baking to prevent rust.
1. The products have passed the antiviral activity test for cold-rolled steel frames. The test basis and method are ISO 21702:2019. For experimental viruses: human coronavirus, host MRC-5 cells antiviral test, analysis of test results, antiviral activity value, ≥0.6, antiviral activity rate ≥76.4%, Provide a test report with CNAS or CMA logo (original copy or scanned copy with red seal).
2. Oak handrails are used on both sides of the upper layer, and the front is L-shaped high-grade oak decorative panels. The front movable maintenance door is locked and linked. After the lower rear door is opened, the upper maintenance door can be opened. It can be opened and disassembled, which is convenient for LOGO silk screen printing and equipment installation, There are long sound outlets on both sides of the L-shaped board, and the speaker rack installation position is reserved.
3. Split design, the desktop part and the table body are self-contained, which is convenient for entering and exiting the narrow classroom door, with built-in fixing screw holes, and simple installation. The corners are designed with arcs to prevent bumps.

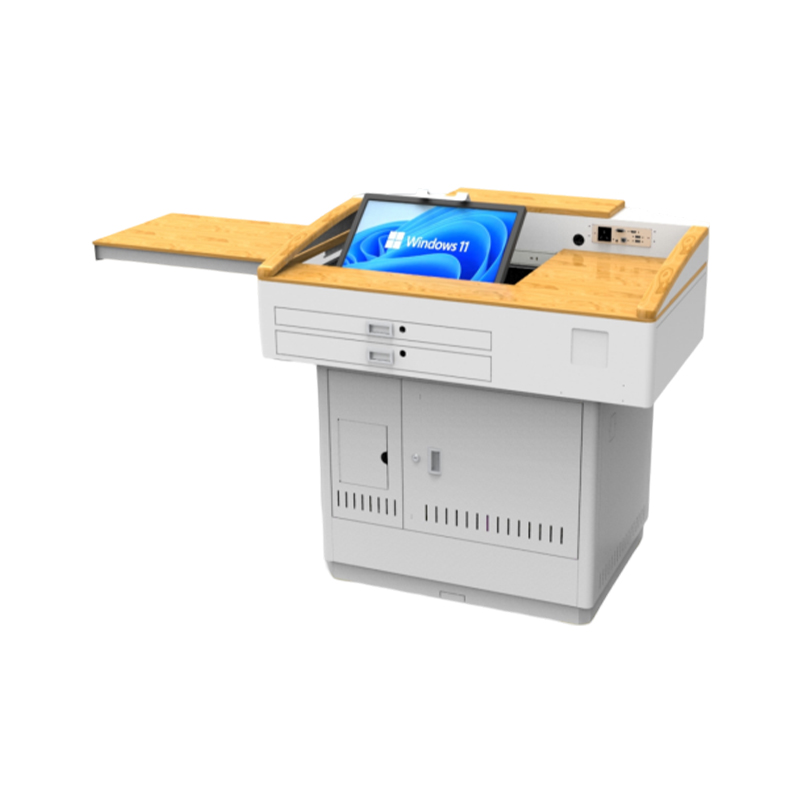

4. A monitor installation position is reserved under the left sliding cover. A 21.5-inch to 23.8-inch monitor can be installed. The angle can be adjusted electrically and the monitor stays at 40°. The upper layer uses an equal-length double drawer design. The upper drawer reserves keyboard and mouse installation positions. The lower drawer is a storage drawer with a lock-free linkage design, which can be used to place the central control panel. It uses a three-section silent steel ball guide rail with a material thickness of 1.2mm.
5. The test results of the guide rails used in the products are in compliance with the inspection requirements of GB/T 10125-2021 "Artificial Atmosphere Corrosion Test Salt Spray Test" and GB/T 6461-2002 "Rating of Samples and Specimens of Metals and Other Inorganic Coverings on Metal Substrates after Corrosion Tests". The protection rating is RA level 10. Provide a test report issued by the CNAS agency (original or scanned copy with a red seal).
6. The height of the facade is 100mm. A notebook module is installed on the right side of the monitor, providing input interfaces: 2 USB3.0 interfaces, 1 five-hole square socket, 1 HDMI cable, and 1 network cable. A cable hole is reserved to facilitate the connection of the mouse and keyboard to the desktop, the podium has its own fixed cable holes, which can fix all the equipment cables in the platform.
7. The front door of the lower layer adopts a double-door design, with a reserved optical drive door on the right side, so that the computer can be turned on and off and the optical drive can be used without opening the cabinet door. The host limit hole and limit card slot are reserved, the left equipment door is equipped with a standard 19-inch national standard rack, detachable columns and baffles, and can be placed on the central control host, amplifier and other multimedia equipment. The total equipment space is 12U, and it uses a floor lock, which is durable and anti-theft. The rear door adopts a single-door design, which is easy to disassemble and assemble. The rear door opens clockwise from right to left. The lower right side panel reserves an 86-box installation position and a knock-out hole design. The front and rear doors and the left and right sides are all equipped with heat dissipation holes, which are beautiful and atmospheric.
8. The lower layer is assembled. The left and right side panels are pushed into the holes from front to back with the bottom buckles. The front and rear door frames are fixed with screws. The installation is simple. The bottom is 6CM off the ground, which is moisture-proof and rust-proof.
